Description

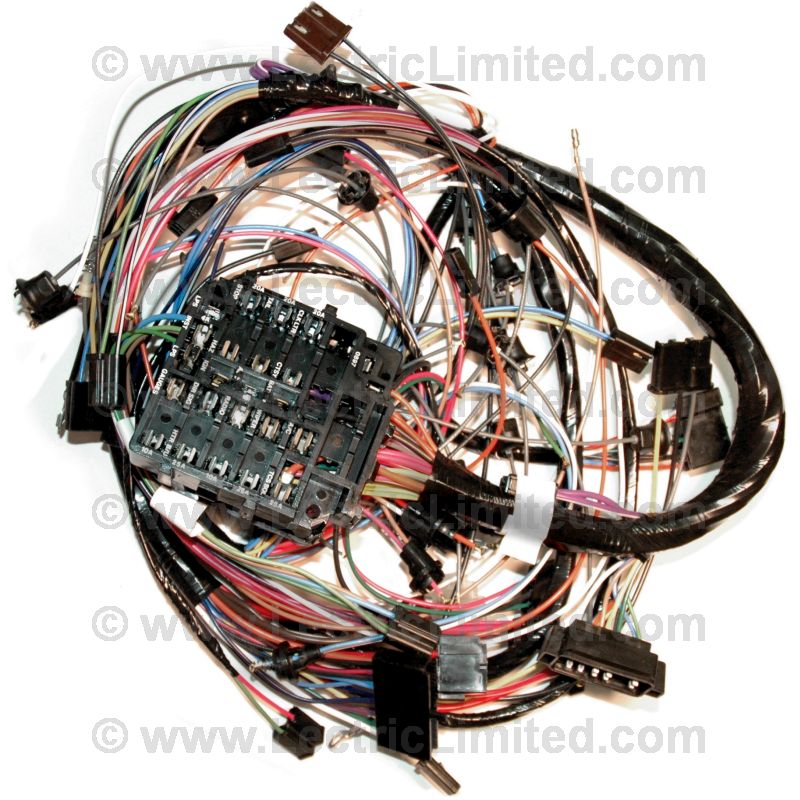

all with air conditioning, 1st design: harness routes through mounting brackets affixed to lower-backside of speedometer and tachometer

Additional information

Lectric Limited Part #: VMA7000AC
OEM Part #: 08901372
WebID Part #: id-vma7000ac-0001
Weight: 4.6 lbs

You have not selected a vehicle

Also fits: This fit is only a guideline. Please verify the fit by entering your specific vehicle.

Make	Model	Years
CHEVROLET	CORVETTE	1970

TECH NOTES:
Do I need to buy a 1st or 2nd Design Dash Harness?

View the “FAQ” page on our website, under the “What Do I Need To Buy?” section.

CONNECTS TO:
– Air Conditioning Harness Connection
– Air Conditioning & Heater Control Light
– Ammeter Gauge
– Backup Light Switch Connection (manual transmission)
– Brake Light Switch
– Brake Warning Light
– Bulkhead Connector (passes through firewall)
– Cigarette Lighter
– Cigarette Lighter Light
– Clock
– Console Ground
– Courtesy Light (driver & passenger side)
– Courtesy Light Switch (driver & passenger side)
– Door Ajar Warning Light
– Fuel Gauge
– Fuse Block
– Ground (to hinge pillar inner reinforcement)
– Hazzard Flasher
– Headlight Dimmer Switch
– Headlight Door Warning Light
– Headlight Switch
– Heater Blower Motor Resistor
– Hi-Beam Light
– Ignition Switch
– Instrument Cluster Grounds
– Instrument Lights
– Neutral Safety/Backup Light Switch Connection (automatic transmission)
– Neutral Safety Switch Extension Harness Connection (manual transmission)
– Parking Brake Warning Light Switch
– Radio
– Radio Capacitor
– Rear Body Harness Connection
– Temperature Gauge
– Turn Signal Flasher
– Turn Signal Light (left & right side)
– Turn Signal Switch Connection
– Windshield Wiper & Washer Switch
– Windshield Wiper Door Relay
– Windshield Wiper Door Vacuum Solenoid
– Windshield Wiper Override Switch Connection
