Description

ATO/ATC “standard” blade, 7 pc. fuse set with integrated red LED fault indicator on top of fuses. LED glows brightly when fuse is blown. Eliminates the guess work and speeds location of blown fuses. Color-coded, fast acting & UL approved. 0.75″ wide. Set contains one of (5A, 7.5A, 10A, 15A, 20A, 30A). Primarily used on vehicles built between the late 1970s & mid 1990s.

Additional information

Lectric Limited Part #: ATC201
WebID Part #: id-atc201-0025
Weight: 0.1 lbs

You have not selected a vehicle

Also fits: This fit is only a guideline. Please verify the fit by entering your specific vehicle.

Make	Model	Years
AMERICAN MOTORS	ALL MODELS	1981 - 1983
BUICK	FULLSIZE/RIVIERA	1981 - 1995
BUICK	SKYLARK/SPECIAL/GRAN SPORT	1981 - 1987
CADILLAC	FLEETWOOD/SEVILLE/DEVILLE/EL DORADO	1981 - 1983
CHEVROLET	CAMARO	1981 - 2002
CHEVROLET	CHEVELLE/EL CAMINO/MONTE CARLO/MALIBU	1981 - 1987
CHEVROLET	CORVETTE	1981 - 1992
CHEVROLET	FULLSIZE 1958 & UP	1981 - 1985
CHEVROLET	S10 SERIES: PICK-UP/BLAZER	1982 - 1995
CHEVROLET	TRUCK/PICK-UP/SUBURBAN/BLAZER	1981 - 1982
GMC	S15 SERIES: PICK-UP/SONOMA/JIMMY	1983 - 1993
GMC	TRUCK	1981 - 1994
OLDSMOBILE	CUTLASS/442/F-85	1981 - 1987
OLDSMOBILE	FULLSIZE	1981 - 1992
OLDSMOBILE	TORONADO	1981 - 1985
PONTIAC	FIREBIRD/TRANS AM	1981 - 1989
PONTIAC	FULLSIZE/GRAND PRIX	1981 - 1995
PONTIAC	FIERO	1984 - 1988

TECH NOTES:

A fuse is a safety device that protects an electric circuit from becoming overloaded. Fuses contain a length of thin wire (usually of a metal alloy) that melts and breaks the circuit if too much current flows through it.

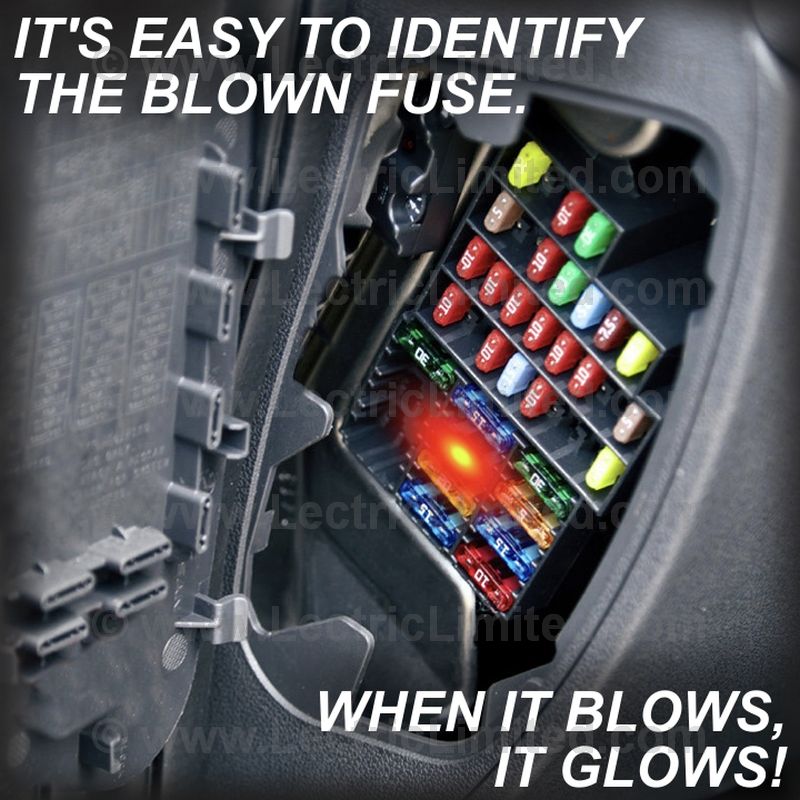

These fuses are similar to traditional fuses in that they are designed to protect your vehicle's electrical system in case of an electrical overload or short circuit. However, unlike traditional fuses, if this "Glo-Blo" fuse is blown, an integrated indicator LED (red light) on top of the fuse glows brightly. This allows you to immediately pin-point the blown fuse and speeds replacement.

"Glo-Blo" fuses are ideal for troublesome circuits where fuses often blow. The color-coded fuses instantly let you know the right amperage of the fuses to be replaced. These fuses snap into place without the use of special tools and provide easy identification of blown fuses in hard-to-reach locations.

Note: You will probably need more than one packet to completely re-fuse your fuse block. Make certain that ignition key is in the "on" position to verify that fuse is blown. For 12 volt systems. Patented fuse carries UL, CE, SAE, e-Mark and G-Mark approvals.
