Description

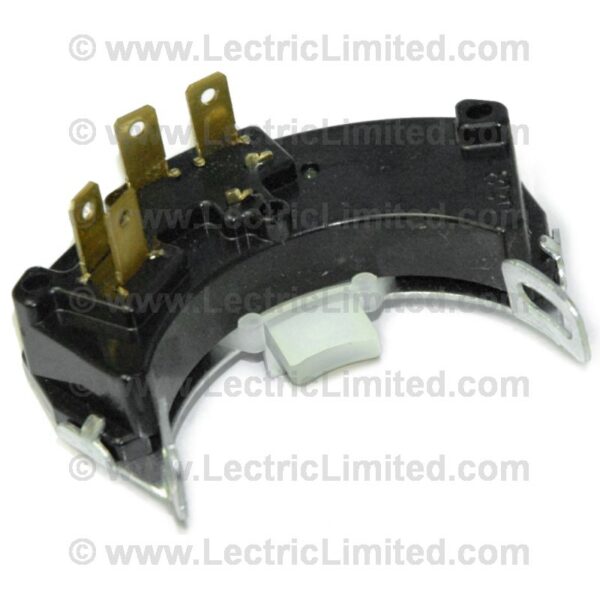

-O.E.M.-, console shift automatic trans., 1st design: neutral safety switch located on shifter, without seat belt warning buzzer

Additional information

Lectric Limited Part #: 01993434
OEM Part #: 01993434
WebID Part #: id-01993434-0005
Weight: 0.1 lbs

You have not selected a vehicle

Also fits: This fit is only a guideline. Please verify the fit by entering your specific vehicle.

Make	Model	Years
CHEVROLET	CAMARO	1968 - 1972
CHEVROLET	CHEVELLE/EL CAMINO/MONTE CARLO/MALIBU	1968 - 1972
CHEVROLET	FULLSIZE 1958 & UP	1968 - 1969

TECH NOTES:

SEAT BELT WARNING BUZZER
It is important to identify if your 1972 vehicle came from the factory with, or without the seat belt warning buzzer to avoid problems when rewiring your vehicle. Do not assume that because you don't hear the buzzer, that your vehicle did not come with one. This buzzer was often removed because the sound was annoying.

1972 introduced the seat belt warning buzzer to all GM vehicles. This buzzer was designed to audibly remind drivers to fasten their seat belt.

Some early 1972 production vehicles did not have a seat belt warning system.

Other early 1972 production vehicles used the following to control the seat belt warning system:
* Indicator Lamp (illuminated for a few seconds)
* Timer (located behind dash)

If your vehicle is setup this way, you should purchase the Dash Harness, Rear Body Harness, and/or other electrical items for the "WITHOUT seat belt warning buzzer" application.

Note: MOST 1972 production vehicles used the following to control the seat belt warning system:
* Indicator Lamp (illuminated until seat belt pulled from retractor)
* Warning Buzzer (located behind dash, sounded until seat belt pulled from retractor)
* (1) Seat Switch (located in passenger side seat cushion)
* (2) Seat Belt Retractor Switches (located in each front seat belt retractor)

If your vehicle is setup this way, you should purchase the Dash Harness, Rear Body Harness, and/or other electrical items for the "WITH seat belt warning buzzer" application.

TECH NOTES:

A Neutral Safety Switch prevents the starter from operating in any transmission range except park, neutral, or when clutch pedal is depressed in manual transmission vehicles.
