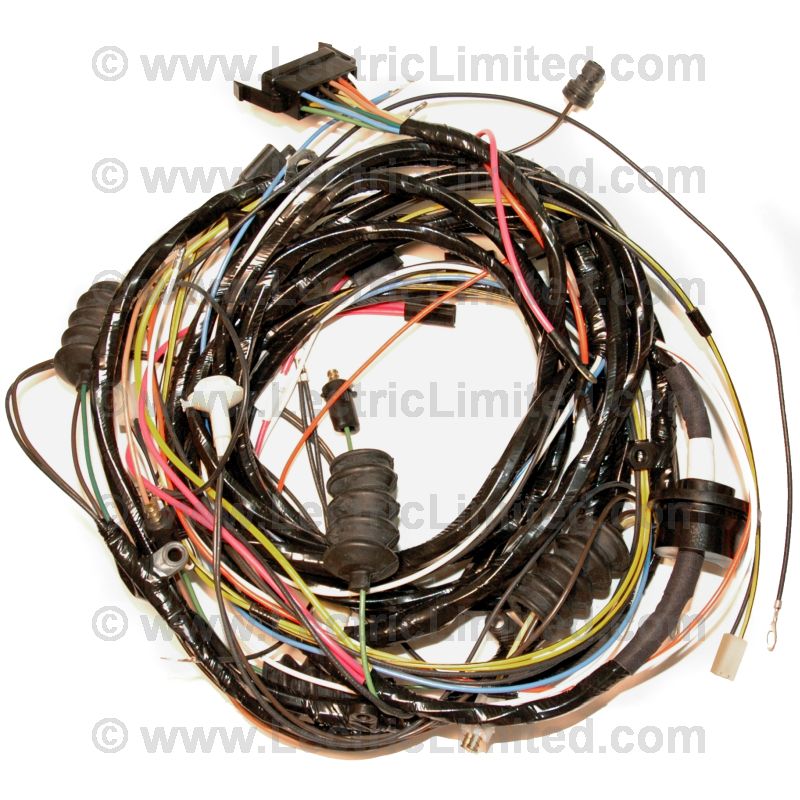

REAR BODY HARNESS

Part #: VRH7300

$517.00

You have not selected a vehicle

Description

all 1st design: 3 wires connect to each door ajar switch, each switch has 3 holes in a plastic insulator to accept pin type terminals on wires from harness

Additional information

Lectric Limited Part #
VRH7300
OEM Part #
08908269
WebID Part #
id-vrh7300-0001
Weight
2.8 lbs

You have not selected a vehicle

Also fits*:* This fit is only a guideline. Please verify the fit by entering your specific vehicle.

MakeModelYears
CHEVROLETCORVETTE1973
CONNECTS TO:
- Alarm System Flasher
- Alarm System Horn (power feed & ground)(located behind driver side fender)
- Alarm System On/Off Switch (located on rear body panel)
- Alarm System Relay
- Backup Lights (driver & passenger side)
- Backup Lights Ground (driver & passenger side)
- Dash Harness Connection
- Door Ajar Switch (driver & passenger)
- Fuel Tank Sending Unit (ground & return signal terminals)
- Ground (to frame)
- Interior Rear Compartment Light
- License Plate Light Assembly (power feed & ground screw on license light housing)
- Rear Glove Box Light Switch Assembly (passenger side)
- Rear Lights (tail/stop, driver & passenger side)
- Rear Lights Ground (tail/stop, driver & passenger side)
- Rear Side Marker Lights (driver & passenger side)
- Seat Belt Retractor Switch (driver & passenger side)
- Seat Switch Connection (passenger side)
