Description

fully-laminated, approx. size 26″x20″

Additional information

Lectric Limited Part #: VWD7700
OEM Part #: 92964724
WebID Part #: id-vwd7700-0001
Weight: 1.1 lbs

You have not selected a vehicle

Also fits: This fit is only a guideline. Please verify the fit by entering your specific vehicle.

Make	Model	Years
CHEVROLET	CORVETTE	1977

TECH NOTES:

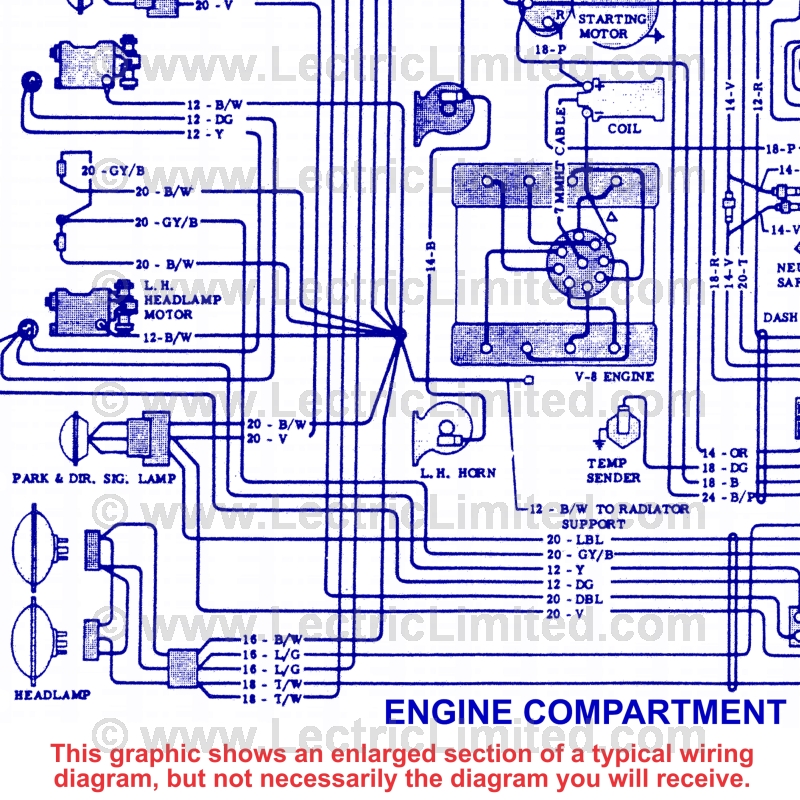

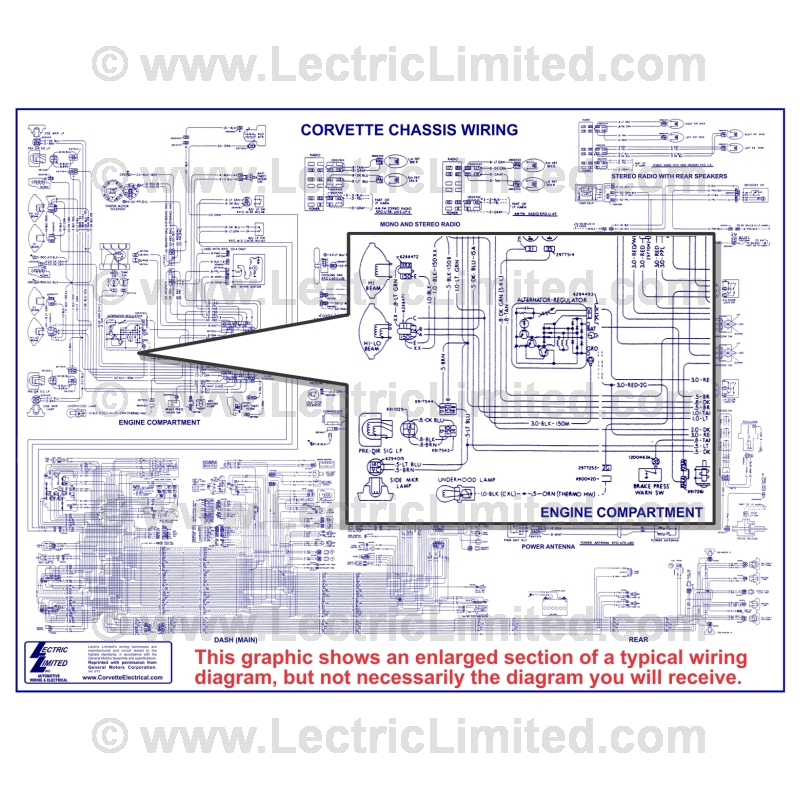

A wiring diagram is primarily used for troubleshooting electrical problems within a vehicle's electrical system. Our wiring diagrams show wire color, wire gauge, circuit number, wire position with in a connector, and graphics of to-and-from locations.

These diagrams are fully-laminated (both sides). So, while working on your vehicle, any grease/oil/dirt smudges can easily be wiped clean.

All Lectric Limited wiring diagrams graphically display all the wiring for a base model car (without factory options). Our diagrams are reproductions of those used by General Motors' mechanics, except they are displayed on one large page (not across multiple small pages).

Reprinted with permission from General Motors Corporation.
