Description

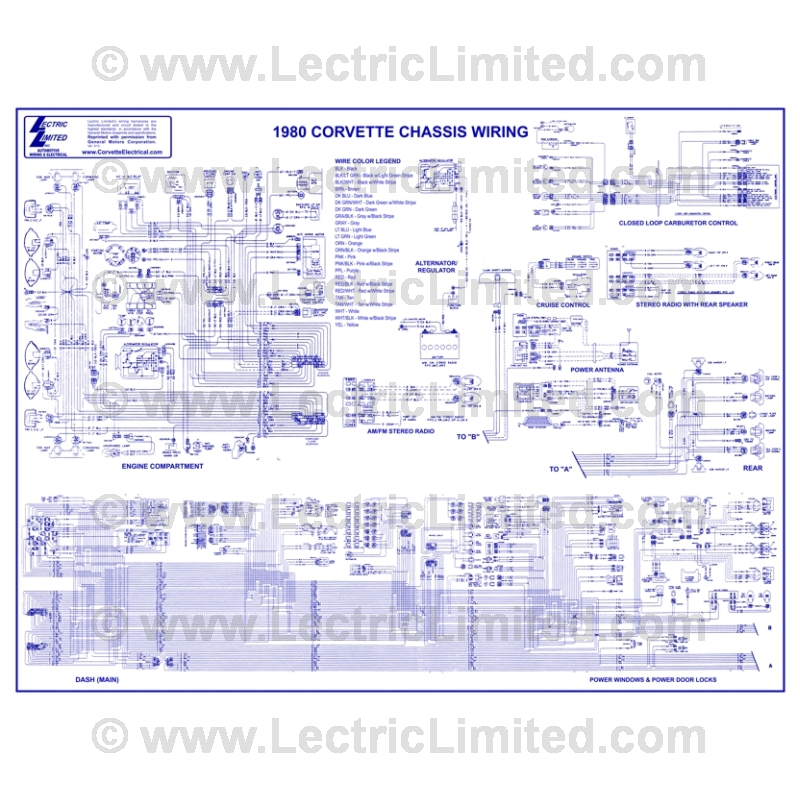

fully-laminated, approx. size 26″x20″
WIRING DIAGRAM
Part #: VWD8000
$13.00
You have not selected a vehicle
Additional information
- Lectric Limited Part #
- VWD8000
- OEM Part #
- 92964727
- WebID Part #
- id-vwd8000-0001
- Weight
- 1.1 lbs
You have not selected a vehicle
Also fits*:* This fit is only a guideline. Please verify the fit by entering your specific vehicle.
| Make | Model | Years |
|---|---|---|
| CHEVROLET | CORVETTE | 1980 |
TECH NOTES:

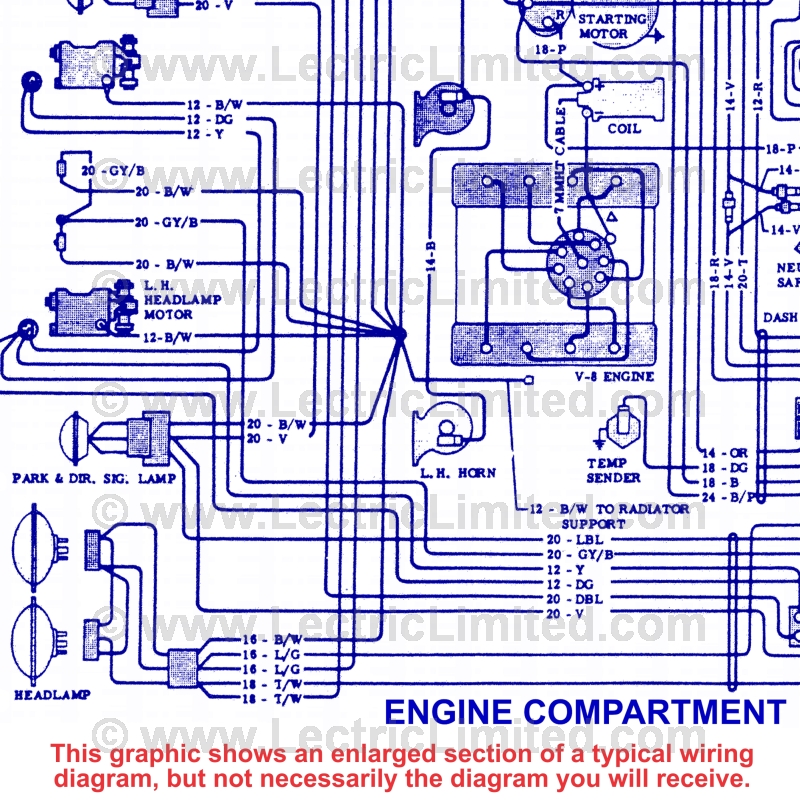

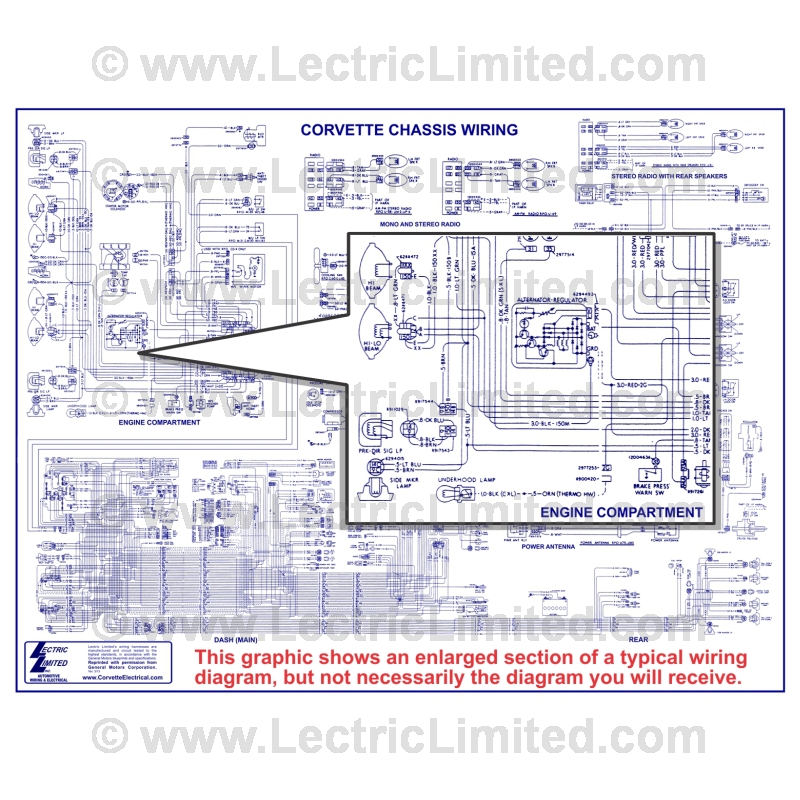

A wiring diagram is primarily used for troubleshooting electrical problems within a vehicle's electrical system. Our wiring diagrams show wire color, wire gauge, circuit number, wire position with in a connector, and graphics of to-and-from locations.
These diagrams are fully-laminated (both sides). So, while working on your vehicle, any grease/oil/dirt smudges can easily be wiped clean.
All Lectric Limited wiring diagrams graphically display all the wiring for a base model car (without factory options). Our diagrams are reproductions of those used by General Motors' mechanics, except they are displayed on one large page (not across multiple small pages).
Reprinted with permission from General Motors Corporation.
A wiring diagram is primarily used for troubleshooting electrical problems within a vehicle's electrical system. Our wiring diagrams show wire color, wire gauge, circuit number, wire position with in a connector, and graphics of to-and-from locations.
These diagrams are fully-laminated (both sides). So, while working on your vehicle, any grease/oil/dirt smudges can easily be wiped clean.
All Lectric Limited wiring diagrams graphically display all the wiring for a base model car (without factory options). Our diagrams are reproductions of those used by General Motors' mechanics, except they are displayed on one large page (not across multiple small pages).
Reprinted with permission from General Motors Corporation.
