Description
fully-laminated, approx. size 22″x17″
“HORN RELAY” has been added to your cart. View cart
WIRING DIAGRAM
Part #: VWD5557
$13.00
You have not selected a vehicle
Additional information
- Lectric Limited Part #
- VWD5557
- OEM Part #
- 92964708
- WebID Part #
- id-vwd5557-0002
- Weight
- 1.1 lbs
You have not selected a vehicle
Also fits*:* This fit is only a guideline. Please verify the fit by entering your specific vehicle.
| Make | Model | Years |
|---|---|---|
| CHEVROLET | CORVETTE | 1955 - 1957 |
TECH NOTES:
A wiring diagram is primarily used for troubleshooting electrical problems within a vehicle's electrical system. Our wiring diagrams show wire color, wire gauge, circuit number, wire position with in a connector, and graphics of to-and-from locations.
These diagrams are fully-laminated (both sides). So, while working on your vehicle, any grease/oil/dirt smudges can easily be wiped clean.
All Lectric Limited wiring diagrams graphically display all the wiring for a base model car (without factory options). Our diagrams are reproductions of those used by General Motors' mechanics, except they are displayed on one large page (not across multiple small pages).
Reprinted with permission from General Motors Corporation.
A wiring diagram is primarily used for troubleshooting electrical problems within a vehicle's electrical system. Our wiring diagrams show wire color, wire gauge, circuit number, wire position with in a connector, and graphics of to-and-from locations.
These diagrams are fully-laminated (both sides). So, while working on your vehicle, any grease/oil/dirt smudges can easily be wiped clean.
All Lectric Limited wiring diagrams graphically display all the wiring for a base model car (without factory options). Our diagrams are reproductions of those used by General Motors' mechanics, except they are displayed on one large page (not across multiple small pages).
Reprinted with permission from General Motors Corporation.
Frequently Bought Together
-

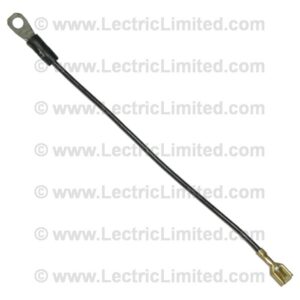

GROUND WIRE
cigarette lighter to clock mounting bolt, all (included with Dash Harness)
ORIGINAL DESIGN SERIES WIRING HARNESS DELUXE SET
all automatic transmission with fuel injection. Includes VLK5557, VCG5562LP, VMA5657, VDW5570, VIG5700AF, VFK5557, VHX5557, VHW5362,... see more

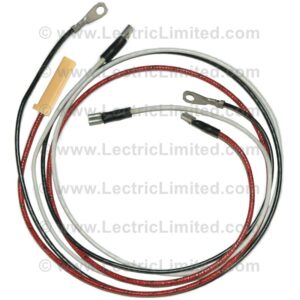

HEATER LEADS
all (from fuse panel to heater switch to blower motor and blower motor ground to... see more
RESTOMOD SERIES ALTERNATOR CONVERSION HARNESS
simple plug-in conversion allows use of a 1984-99 CS external fan series, internally regulated alternator
